03055714 ME60 Huawei Telecom Router MSUF-240 ME0DMSUFF070
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ME0DMSUFF070 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
Description
| PRODUCTS STATUS: | Stock | DIMENSIONS (H X W X D): | 40.1 Mm X 399.2 Mm X 535.6 Mm (1.58 In. X 15.72 In. X 21.09 In.) |
|---|---|---|---|
| TYPICAL POWER CONSUMPTION: | 353.0 W | TYPICAL HEAT DISSIPATION: | 1144.2 BTU/hour |
| WEIGHT: | 8.5 Kg (18.74 Lb ) | BOARD NAME SILKSCREEN: | MSUF-240 |
| HIGH LIGHT: |
03055714 ME60 Huawei Telecom Router, ME0DMSUFF070 Huawei Telecom Router, 03055714 universal telecom router |
||

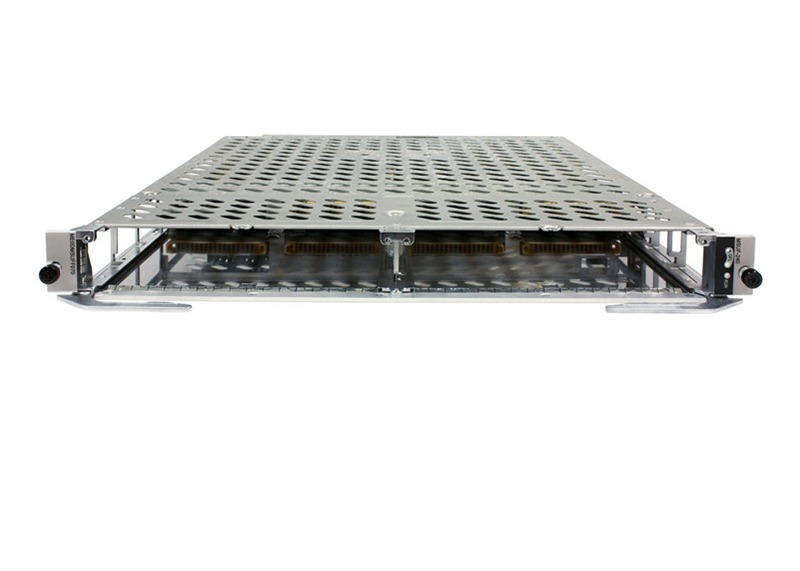

Board name silkscreen: MSUF-240 Description: Flexible Card Multi Service Unit(MSUF-240,2 sub-slots) BOM: 03055714 Model: ME0DMSUFF070
Product Overview

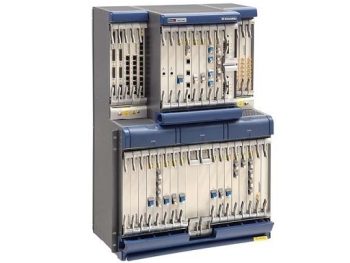

The ME60 is a multi-service control gateway series launched by Huawei. ME60s are mainly used as broadband service access BRAS nodes and IP/MPLS network service-provisioning nodes. The ME60 uses Huawei-developed Solar series NP chips. In addition, the ME60 uses the CLOS distributed multilevel switching architecture, and leverages distributed hardware-based forwarding and non-blocking switching to achieve excellent line-speed forwarding performance, superb scalability, comprehensive QoS, and strong service processing capabilities. Based on an industry-leading 2 Tbit/s platform, the ME60 is compatible with the line cards already installed on existing networks, which helps to maximize the protection of customer investment. The ME60 is a high-performance service management and provisioning platform, which fully meets the requirements of a variety of service-provisioning modes, carries multiple services simultaneously, and ensures that a wide range of telecommunication services run stably and reliably. By using the ME60 and corresponding solutions, operators can construct a future-oriented intelligent broadband IP network with greatly reduced multi-service network construction and O&M costs.
Product features
The ME60 has the following table Specifications:
|
Attribute
|
ME60-X16A
|
ME60-X8A
|
ME60-X16
|
ME60-X8
|
ME60-X3
|
|
Switching Capacity
|
50.32 Tbit/s
|
25.16 Tbit/s
|
12.58 Tbit/s
|
7.08 Tbit/s
|
1.08 Tbit/s
|
|
Forwarding Performance
|
11,520 Mpps
|
5,760 Mpps
|
5,760 Mpps
|
2,880 Mpps
|
360 Mpps
|
|
Number of Slots
|
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs
|
12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs
|
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs
|
11 slots, including 8 LPUs, 2 SRUs, and 1 SFU
|
5 slots, including 3 LPUs and 2 SRUs
|
|
Dimensions
(H x W x D)
|
1,778 mm x 442 mm x 650 mm (40U)
|
934 mm x 442 mm x 650 mm (21U)
|
1,420 mm x 442 mm x 650 mm (32U)
|
620 mm x 442 mm x 650 mm (14U)
|
175 mm x 442 mm x 650 mm (DC 4U);
220 mm x 442 mm x 650 mm (AC 5U)
|
|
Maximum Power Consumption
|
7,220W (BSUF-240)
9,040W (BSUF-480)
|
4,110W (BSUF-240)
4,770W (BSUF-480)
|
4,610W (BSUF-100)
6,210W (BSUF-240)
|
2,340W (BSUF-100)
3,220W (BSUF-240)
|
920W (BSUF-100)
|
|
Full Configuration Weight
|
356 kg
|
190 kg
|
279 kg
|
136 kg
|
DC: 42 kg (100G)
AC: 52 kg (100G)
|
|
Interface Types
|
100 GE-WAN/LAN
10 GE-WAN/LAN GE/FE |
||||
|
BRAS
|
User access protocols: PPPoE, IPoE, 802.1X, and ND access
User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User billing protocols: RADIUS, HWTACACS, and COPS User authorization protocols: RADIUS, HWTACACS, and COPS Policy protocols: COPS, COA |
||||
|
L2TP
|
Maximum number of sessions supported: 64K per slot and 128K per device
Maximum number of tunnels supported: 16K per slot, 16K per LAC device, and 48K per LNS device |
||||
|
IPv4
|
Supports the static routing protocol and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4. All ports support line-rate forwarding even in complex routing environments, for example, when route flapping occurs
|
||||
|
IPv6
|
Supports the following:
IPv4/IPv6 dual stacks A variety of IPv4-to-IPv6 transition technologies: Manually configured tunnels, IPv6 over IPv4 tunnels, GRE tunnels, IPv4 over IPv6 tunnels, and IPv6 Provider Edge (6PE) IPv6 static routes and dynamic routing protocols, such as BGP4/BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing Network Address Translation IPv6-to-IPv4 (NAT64), NAT44 and Dual-Stack Lite (DS-Lite) Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB |
||||
|
MPLS/MPLS VPN
|
Supports the following:
MPLS TE and MPLS/BGP VPN in compliance with RFC 2547bis Inter-AS Option A, inter-AS Option B, and inter-AS Option C Integration with Internet services Martini MPLS L2VPN and Kompella MPLS L2VPN VPLS and VLL Heterogeneous interworking Multicast VPN |
||||
