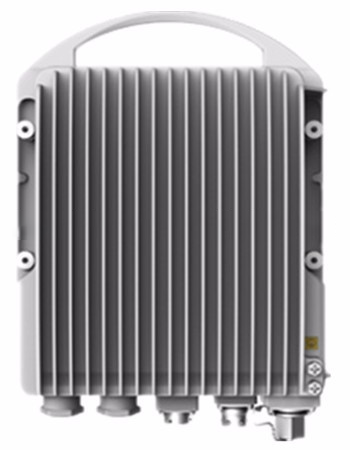

RTN 380 Microwave Antenna 23G & 80G,600mm A23D80S06HAC RTN380
Type：Microwave
Model Number：RTN 380
Place of Origin：Guangdong, China
Model：A23D80S06HAC
RTN 380 Dimensions (H x W x D)：265 x 265 x 65 mm
Microwave type 1：IP microwave over Native Ethernet
Microwave type 2：Microwave carrying CPRI services
Frequency bands：71-76 GHz and 81-86 GHz
Channel spacing：62.5 MHz, 125 MHz, 250 MHz, 500 MHz, and 750 MHz
RF configuration mode 1：1+0 mode
RF configuration mode 2：2+0 mode
RF configuration mode 3：1+1 HSB mode
RF configuration mode 4：Multi-directional mode
Описание
|
RTN310
|
RTN360
|
RTN380
|
|
|
Support frequency
|
13/15/18/23/38GHz
|
59-64GHz
|
71-86GHz
|
|
Channel spacing
|
7/14/28/56MHz
|
200MHz
|
62.5/125/250/500/750MHz
|
|
Modulation mode
|
QPSK Strong~2048QAM Light
|
160QAM
|
QPSK Strong~64 QAM
|
|
Throughput
|
2Gbps Max
|
400Mbps
|
4Gbps Max
|
|
Business interface
|
GE
|
GE
|
GE, CPRI interface
|
|
USB interface
|
Support
|
Support
|
Support
|
|
Working environment
|
Working temperature : -35℃~+55℃
Relative humidity: 5%~100%
|
||
|
Power supply range
|
Support Ethernet power supply;
Support DC power : -38.4V ~ -57.6V
|
||
|
Weight
|
6kg
|
2.5kg
|
3.8kg
|
|
Item
|
Specifications
|
|
Microwave types
|
IP microwave over Native Ethernet
Microwave carrying common public radio interface (CPRI) services |
|
Frequency bands
|
71-76 GHz and 81-86 GHz
|
|
Channel spacing
|
62.5 MHz, 125 MHz, 250 MHz, 500 MHz, and 750 MHz
|
|
Modulation schemes
|
QPSK Strong, QPSK, 16QAM Strong, 16QAM, 32QAM, and 64QAM
|
|
RF configuration modes
|
1+0 mode
2+0 mode 1+1 HSB mode Multi-directional mode |
|
Channel configuration modes
|
Adjacent channel alternate polarization (ACAP)
Adjacent channel co-polarized (ACCP) Co-channel dual polarization (CCDP) |
|
AMAC
|
Supported
|
|
ATPC
|
Supported
|
|
Super Dual Band
|
Supported
|
|
Service ports
|
When Ethernet services are transmitted, 2xFE/GE optical ports and 2xGE electrical ports are supported, one of the electrical ports supporting PoE. When CPRI services are transmitted, 1xCPRI port is supported. |
|
Service types
|
1.Ethernet services
E-Line services: based on port, port+VLAN, port+QinQ E-LAN services: based on 802.1d bridge, 802.1q bridge, and 802.1ad bridge A maximum of one E-LAN service is supported.2.CPRI services |
|
Clock features
|
1.Supported clock sources:
Microwave link clock Synchronous Ethernet clock2.IEEE 1588v2 time synchronization |
|
Power supply modes
|
PoE, which supports power supply through the PI, or other PSE equipment
|
|
Dimensions (H x W x D)
|
265 mm x 265 mm x 65 mm
|
|
Antennas
|
Dish antennas and flat antennas
* Dish antennas: available in diameters of 0.2 m, 0.3 m, and 0.6 m * Flat antennas: available in models providing equivalent gain of dish antennas with diameters of 0.3 m |
