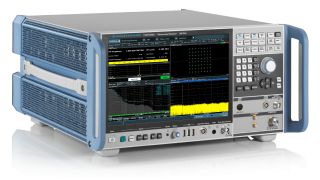

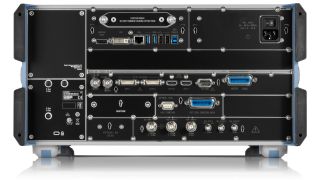

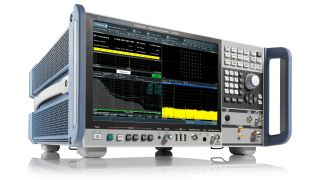

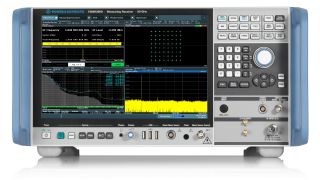

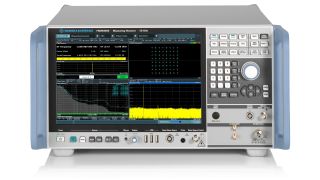

R&S®FSMR3000 measuring receiver Reducing complexity in calibration
- Frequency range from 2 Hz to 8/26.5/50 GHz
- Highly accurate level calibrator with wide level measurement range from –152 dBm to +30 dBm
- AM/FM/PM and dig. modulation analyzer
- Full-featured signal and spectrum analyzer with up to 80 MHz analysis bandwidth
- High-end phase noise analyzer with cross-correlation, typ. –163 dBc/Hz at 10 kHz offset (1 GHz)
描述
Calibration and performance check of signal generators and attenuators
The R&S®FSMR3000 measuring receiver is a complete solution for calibration and performance checks of signal generators and fixed or adjustable attenuators.
The R&S®FSMR3000 is a microwave measurement receiver to calibrate signal generators and attenuators with one single instrument. Most important features provided are tuned RF level measurements, level measurements, analog modulation and spectrum analysis. Additionally, the R&S®FSMR3000 can be equipped with powerful hardware for high-end phase noise test supplementary to the standard phase noise test with the spectrum analyzer. It offers also digital and analog modulation signal analysis, 80 MHz analysis bandwidth, analysis of pulses and VOR/ILS signals. The R&S®FSMR as a single box instrument is designed to reduce complexity in calibration.
