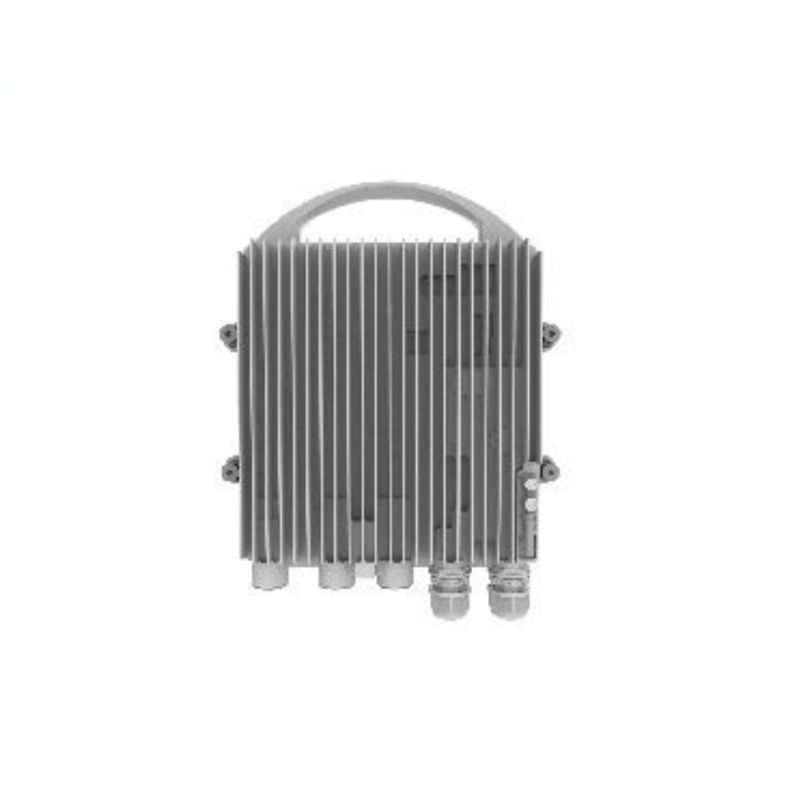

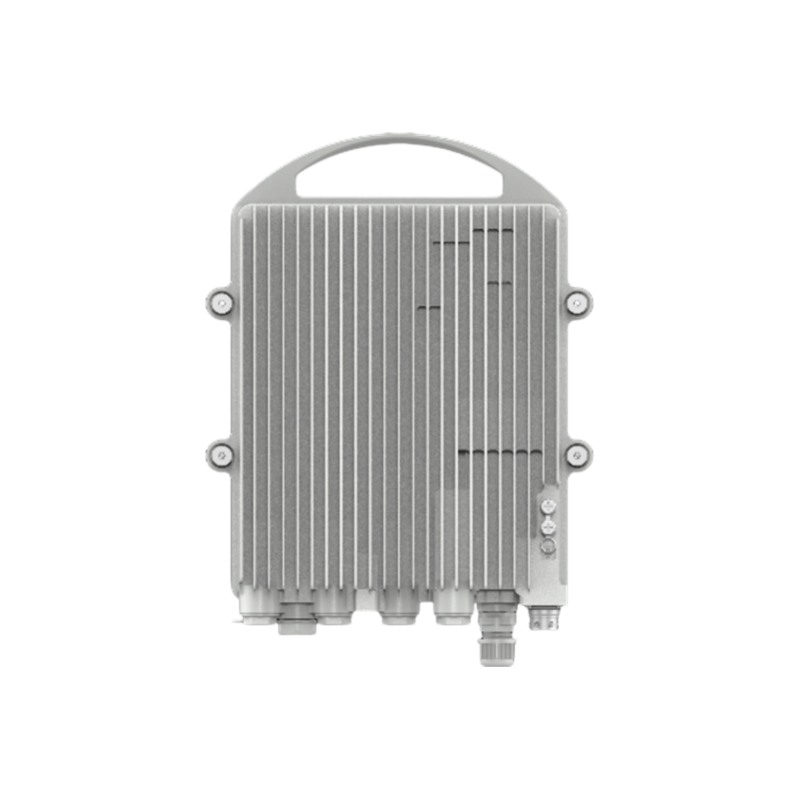

Full Outdoor MicroWave RTN 380H 81G F81310000ALA F81310000AHA RTN380

Item

RTN 380H specifications

Microwave types

IP microwave over native Ethernet
Microwave carrying common public radio interface (CPRI) services
Microwave carrying open base station architecture initiative (OBSAI) services

Frequency bands

71-76 GHz and 81-86 GHz

Channel spacing

Common mode: 250 MHz, 500 MHz, 750 MHz, 1000 MHz, 1500 MHz, and 2000 MHz
Enhanced mode: 62.5 MHz, 125 MHz, 250 MHz, 500 MHz, 750 MHz, 1000 MHz, 1500 MHz, and 2000 MHz

Modulation schemes

Common mode: BPSK, QPSK, 16QAM Strong, 16QAM, 32QAM, 64QAM, 128QAM, and 256QAM
Enhanced mode: BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 512QAM, and 1024QAM

Capacity

Maximum air capacity: 10 Gbit/s
Maximum air-interface service throughput: 10 Gbit/s
Maximum switching capacity: 42 Gbit/s

RF configuration modes

1+0
2+0
1+1 hot standby (HSB)
CCDP (common mode)
XPIC (enhanced mode)
Multiple RF directions

Channel configuration modes

Adjacent channel alternate polarization (ACAP)
Adjacent channel co-polarized (ACCP)
Co-channel dual polarization (CCDP)

AMAC

Supported

ATPC

Supported

Super Dual Band

Support for working as a secondary device to form a Super Dual Band solution together with the RTN 900
Support for working as a primary advice to form a full-outdoor Super Dual Band solution together with the RTN 320/RTN 380H when it works in enhanced mode.
Support for working as a primary device to form a Super Dual Band solution together with third-party common-band microwave links when it works in enhanced mode.

Service ports

Three 10GE SFP optical ports, one GE electrical port, and one power over Ethernet (P&E) port for transmitting Ethernet services (two 10GE SFP ports can also use GE electrical modules)
Three CPRI ports for transmitting CPRI services
Three OBSAI ports for transmitting OBSAI services

Service types

Native Ethernet services: E-Line service and E-LAN service
PW-carried Ethernet services: E-Line service, E-Aggr service, and E-LAN (VPLS) service (VPLS standing for virtual private LAN service)
CPRI services operating at Option 2 to Option 7 rates
OBSAI services operating at 1.536 Gbit/s and 3.072 Gbit/s

QoS/HQoS

Supported

MPLS Tunnel

Supported

PWE3

Supported

Clock features

1.Supported clock sources:
Microwave link clock
Synchronous Ethernet clock2.IEEE 1588v2 time synchronization

3.ITU-T G.8275.1 time synchronization

Power supply modes

Direct current (DC) power or Power over Ethernet, (generally, connected to an RTN B20 PI)

Dimensions (H x W x D)

320 mm x 265 mm x 95 mm

Antennas

0.2 m, 0.3 m, and 0.6 m dish antennas
0.3 m flat antennas
