- Frequency range from 2 Hz to 4, 7.5, 13.6, 30, 44, 50/54 GHz
- Analysis bandwidth up to 1 GHz
- SSB phase noise at 10 kHz offset (1 GHz): –127 dBc/Hz
- GUI with multi-touch, SCPI recorder and event based actions
- Options for analog and digital signal analysis, including 5G NR
Rohde&Schwarz
搜索结果 13：
-
-
-

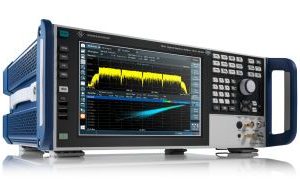

FSW Signal and spectrum analyzer Setting standards in innovation and usability
- Unparalleled low phase noise and best sensitivity on the market
- 8.3 GHz internal analysis bandwidth
- 800 MHz real-time analysis bandwidth
- SCPI recorder simplifies code generation
- High dynamic range enables outstanding EVM performance
-
R&S®FSMR3000 measuring receiver Reducing complexity in calibration
- Frequency range from 2 Hz to 8/26.5/50 GHz
- Highly accurate level calibrator with wide level measurement range from –152 dBm to +30 dBm
- AM/FM/PM and dig. modulation analyzer
- Full-featured signal and spectrum analyzer with up to 80 MHz analysis bandwidth
- High-end phase noise analyzer with cross-correlation, typ. –163 dBc/Hz at 10 kHz offset (1 GHz)
-
R&S®FSC Spectrum analyzer Professional spectrum analysis – compact and cost-efficient
- Frequency range from 9 kHz to 6 GHz
- Excellent RF performance ideal for many standard measurement applications
- Tracking generator models available
- Compact form factor
- Low power consumption
-

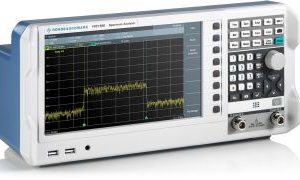

R&S®FPC Spectrum analyzer Unrivaled entry class performance
- RF performance engineered in Germany
- 10.1″ WXGA (1366 × 768 pixel) display – largest and highest resolution in class
- Tracking generator and independent CW signal generator
- Built-in VSWR bridge
- One port vector network analyzer with Smith chart display
-
R&S®FPL1000 Spectrum analyzer Experience high performance wherever you are
- Frequency range 5 kHz to 26.5 GHz
- SSB phase noise: typ. –108 dBc (1 Hz) at 10 kHz
- DANL with preamplifier: typ. –163 dBm from 10 MHz to 2 GHz
- Lightweight with small footprint
- 40 MHz analysis bandwidth (option)
-
R&S®FSVR Real-time spectrum analyzer
- Frequency range from 10 Hz to 7 GHz, 13.6 GHz, 30 GHz or 40 GHz
- 40 MHz real-time analysis bandwidth
- Triggering on frequency masks
-
R&S®FPS Signal and spectrum analyzer Compact and fast for automated tests
- Frequency range up to 4/7/13.6/30/40 GHz
- Up to 160 MHz signal analysis bandwidth
- 0.4 dB level measurement uncertainty up to 7 GHz
- Measurement applications for GSM/EDGE (including EDGE Evolution), WCDMA/HSPA+, LTE, 5G, WLAN, vector signal analysis
-
R&S®FSV3000 Signal and spectrum analyzer
- Frequency range from 10 Hz to 4, 7.5, 13.6, 30, 44, 50 GHz
- Analysis bandwidth up to 200 MHz
- SSB phase noise at 10 kHz offset (1 GHz): –114 dBc/Hz
- GUI with multi-touch, SCPI recorder and event based actions
- Options for analog and digital signal analysis, including 5G NR
-
R&S®FSVA3000 Signal and spectrum analyzer
-
-
R&S®ZVA vector network analyzer Continuous sweep up to 110 GHz
- System frequency range: 10 MHz to 110 GHz
- Dynamic range up to 130 dB (typ)
- Two test ports, 1.0 mm male
- Base unit R&S®ZVA67 usable as stand alone box
-
R&S®ZNA vector network analyzers
- 10 MHz to 26.5/43.5/50/67 GHz (R&S®ZNA26/43/50/67)
- Two or four port models available
- Excellent RF-performance
- Up to four integrated sources
- Unique and intuitive touch-only operation
