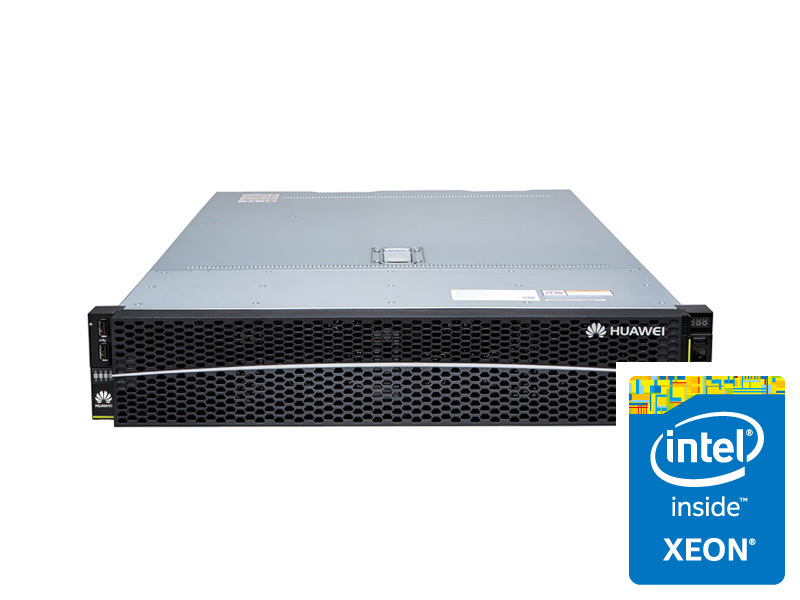

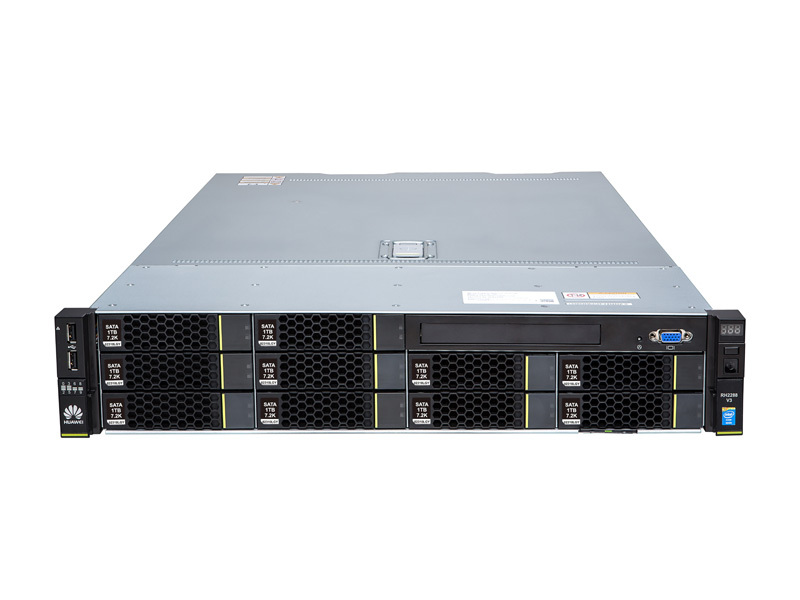

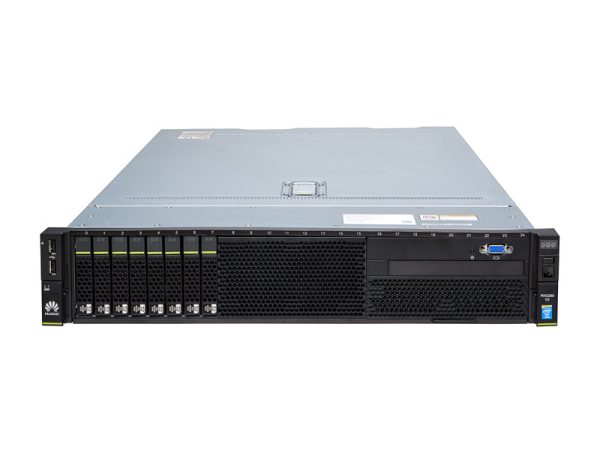

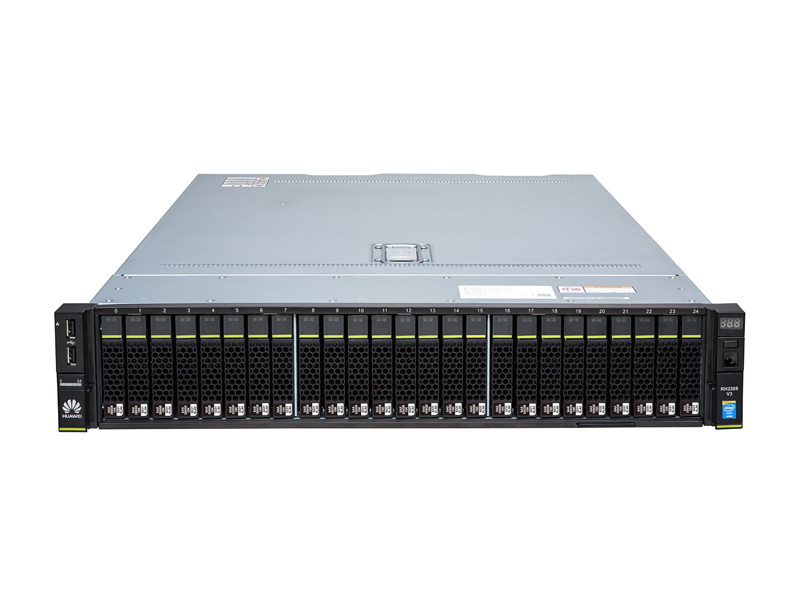

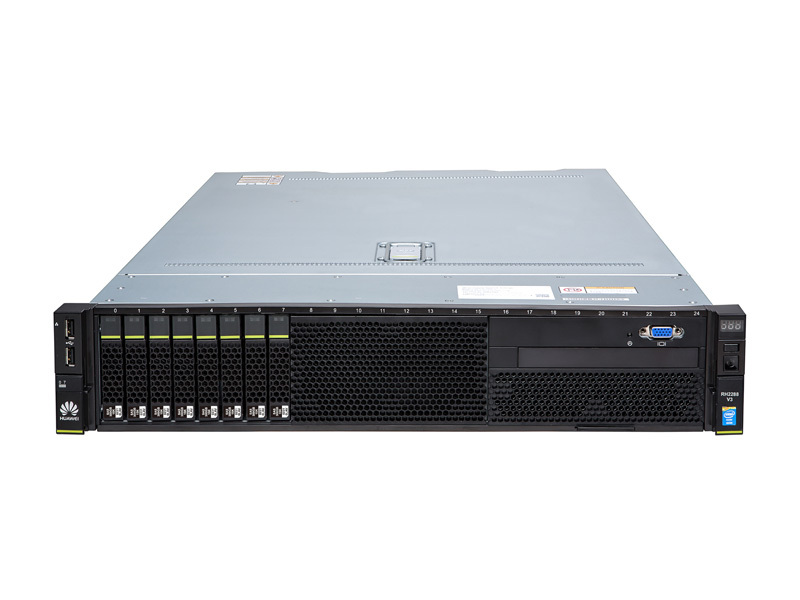

FusionServer RH2288H V3 Rack Server
描述
| RH2288H V3 | |
| Form factor | 2U rack server |
| Number of processors | 1 or 2 |
| Processor model | Intel®Xeon®E5-2600 v3 series processor |
| Number of memory slots | 24 slots for DDR4 RDIMMs or LRDIMMs |
| Maximum local storage | Supports the following hard disk configurations:• Eight front 2.5-inch SSDs or SAS or SATA HDDs • Ten front 3.5-inch SATA HDDs • Twelve front 3.5-inch SAS or SATA HDDs and two rear hard disk modules. Each module provides two 2.5-inch SSDs or SAS or SATA HDDs or 3.5-inch SAS or SATA HDDs. • Twenty-five front 2.5-inch SSDs or SAS or SATA HDDs and two or three rear 2.5-inch SSDs or SAS or SATA HDDs Supports built-in Flash: |
| RAID | Supports RAID 0, 1, 10, 5, 50, 6, and 60Uses a supercapacitor to protect RAID cache data from power failures Supports RAID state migration, configuration memory, self-diagnosis, and web-based remote configuration |
| Network ports | Supports the following network configurations:• Two GE electrical ports, supporting Network Controller Sideband Interface (NC-SI), WOL, and PXE • Four GE electrical ports, supporting NC-SI, WOL, and PXE • Two 10GE optical ports, supporting NC-SI and PXE • Two 10GE electrical ports, supporting NC-SI, WOL, and PXE |
| PCIe expansion | Supports a maximum of 9 PCIe slots |
| Fan | Hot-swappable fan modules in N+1 redundancy |
| Power supply | 2 hot-swappable power supplies in 1+1 redundancy |
| Management | The on-board iBMC module supports Intelligent Platform Management Interface (IPMI), SOL, KVM over IP, and virtualmedia, and provides a 1 Gbit/s RJ45 management network port supporting NC-SI. |
| Supported OSs | CentOSCitrix XenServer Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Operating temperature | 5°C to 45°C (41°F to 113°F) |
| Certification | CE, UL, FCC, CCC, and RoHS |
| Installation suite | Guide railsHolding rails and cable management arm (optional) |
| Dimensions (W x D x H) | RH2288H V3 with 3.5-inch hard disks: 447 mm × 748 mm x 86.1 mm (17.60 in. x 29.45 in. x 3.39 in.)RH2288H V3 with 2.5-inch hard disks: 447 mm × 708 mm x 86.1 mm (17.60 in. x 27.84 in. x 3.39 in.) |
