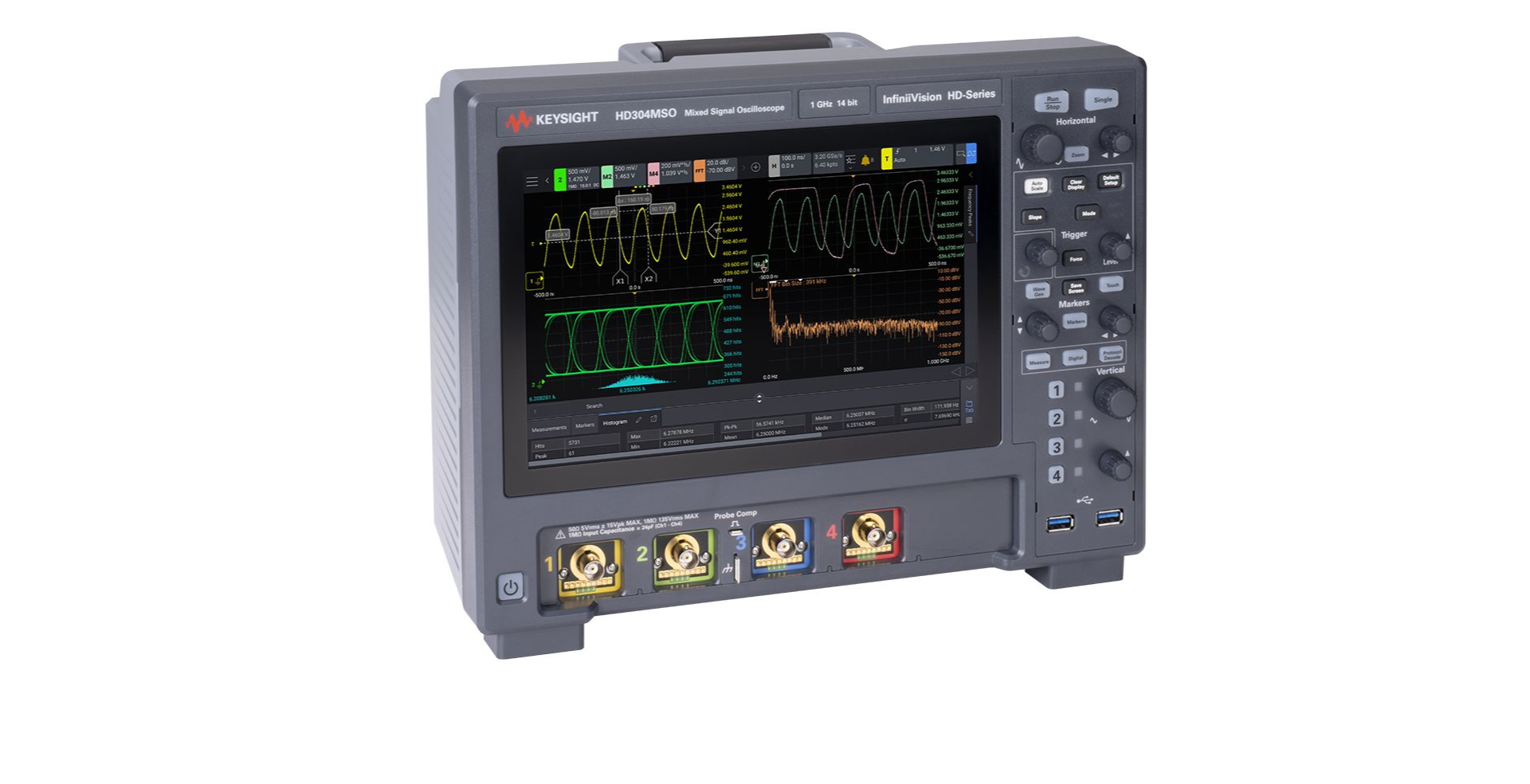

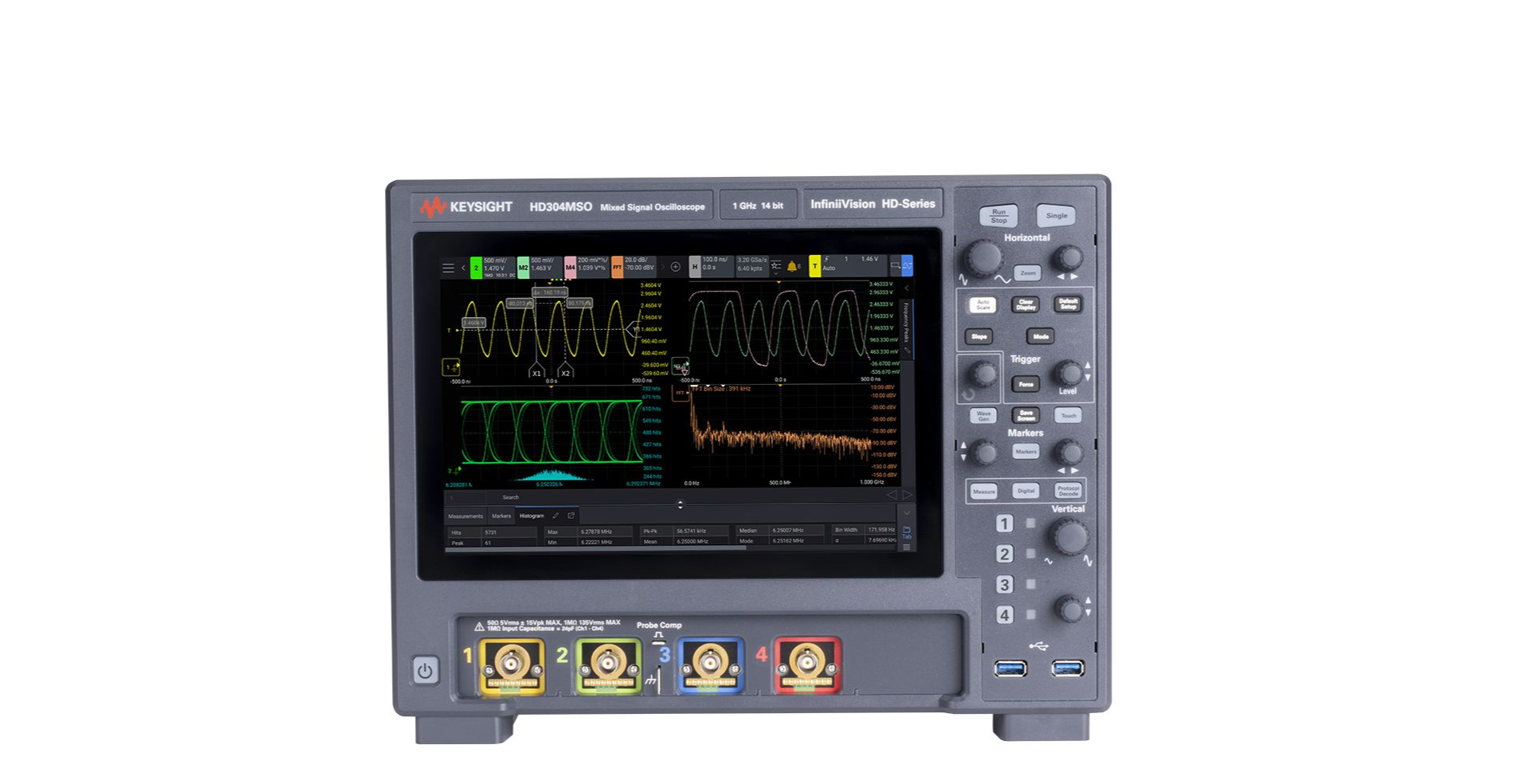

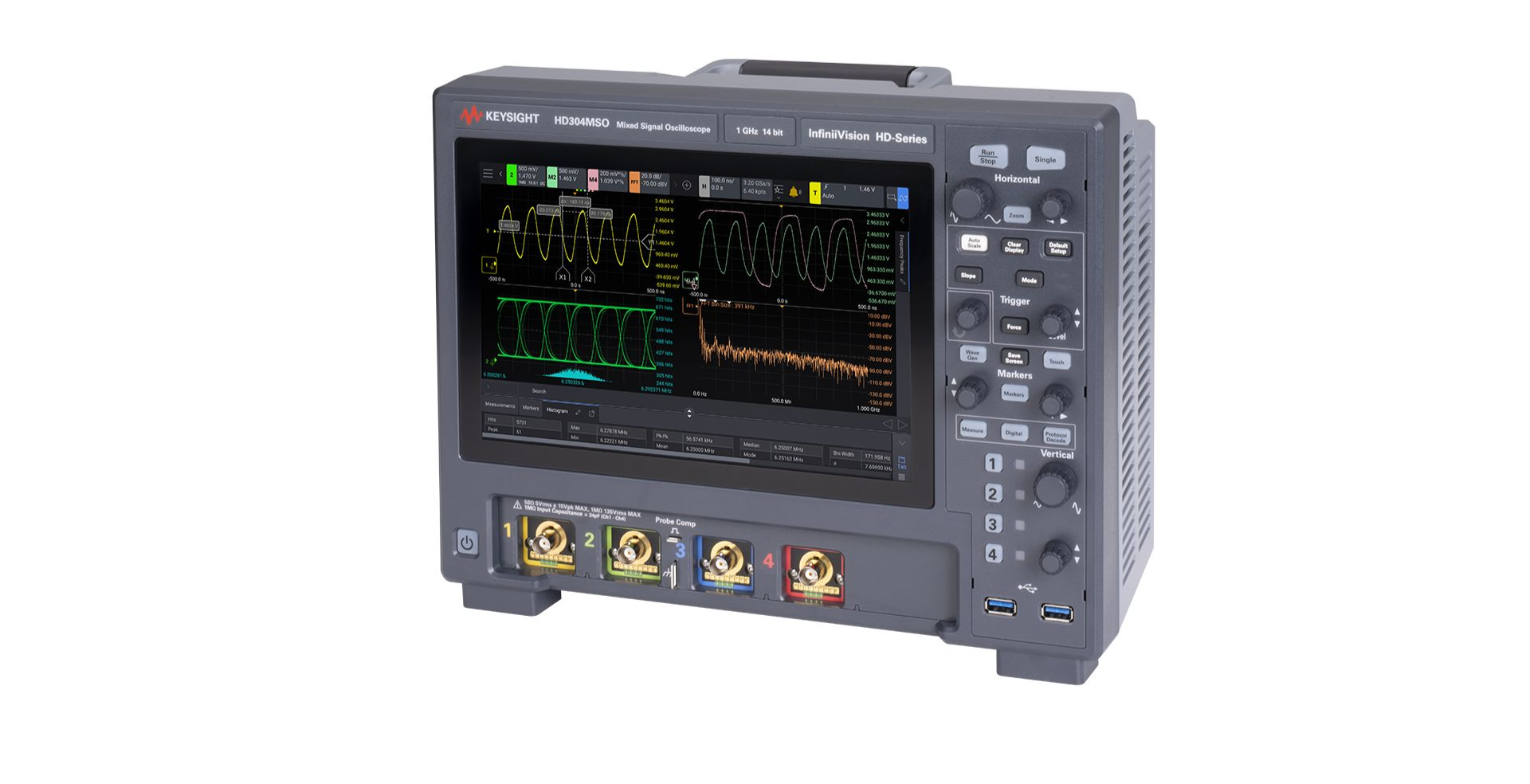

HD302MSO InfiniiVision Oscilloscope: 2 Analog Channels

• Experience bandwidths from 200 MHz to 1 GHz and two analog channels.
• Increase vertical resolution by four times with the 14-bit analog-to-digital converter (ADC) versus a 12-bit ADC.
• View and analyze your signals easily with the 10.1-inch capacitive touch screen.
• See smaller signals with a 50 µV_RMS noise floor.
• Isolate signals in seconds with exclusive zone triggering.
• See more signal detail with the uncompromised 1.3 M waveform / second update rate.
• Benefit from all-new custom technology optimized for oscilloscope measurements.
• Capture more data with up to 100 Mpts memory.
• Experience a brand-new user interface with advanced capabilities, including split grids and bandwidth-limiting options.
• Expand your measurement capabilities with full upgradability; add bandwidth, system upgrades, and advanced application software at any time.

What’s included:

• Keysight InfiniiVision HD3 Series oscilloscopes with two analog channels
• two-pack of 500 MHz passive probes
• Fault Hunter
• frequency response analysis
• zone triggering
• segmented memory
• MSO license (compatible with 3000A / T / G and 4000A / G X-Series MSO cables)
• mask testing
• waveform and measurement histograms and fast Fourier transform
• KeysightCare technical support
• three-year factory warranty
• localized power cord, interface, and front-panel overlay
