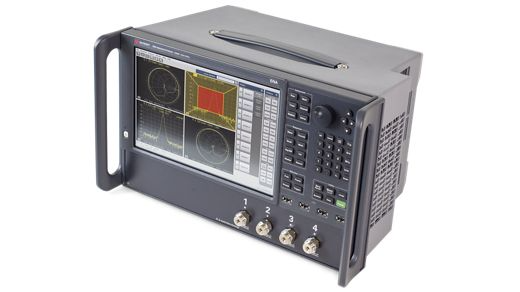

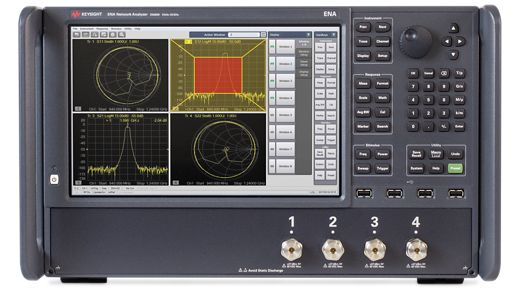

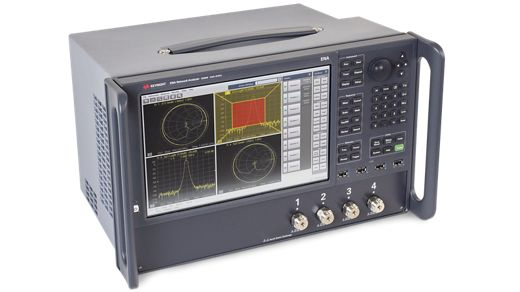

Keysight E5080B ENA Vector Network Analyzer

Highlights

 Industry’s Most Flexible and Integrated ENA Vector Network Analyzer

Highly integrated devices require an RF and microwave measurement solution offering complete characterization. The Keysight E5080B vector network analyzer (VNA) provides R&D performance up to 53 GHz and advanced test flexibility. Dynamic range, trace noise, and temperature stability guarantee reliability and repeatability.

The E5080B VNA enables complete device characterization for passive components, amplifiers, mixers, and frequency converters. Integrated DC sources, bias tees, pulse generators, pulse modulators, and an internal second source enable more measurements on one instrument. Gain deeper insights with software applications including spectrum analysis, mixer measurements, and noise figure.

The E5080B utilizes the same measurement science as other Keysight vector network analyzers such as the PNA, PXI, and USB VNA. The common software platform makes it easy to balance measurement, performance, and budget needs. This commonality guarantees measurement consistency, repeatability, and a common remote programming interface across R&D and manufacturing instruments.

• choose either a 2- or 4-port option
• select a frequency range from 9 kHz to 4.5/6.5/9/14/20 GHz or 100 kHz to 26.5/32/44/53 GHz
• achieve complete device characterization with optional built-in DC sources, bias tees, pulse generators and pulse modulators

• capture device performance with a wide dynamic range of 140 dB
• test from R&D through production with confidence using the same UI and SCPI commands as high-end PNA network analyzers
• improve throughput using spectrum analysis, pulsed-RF measurements, vector mixer measurements, noise figure, and more software applications on a single instrument
