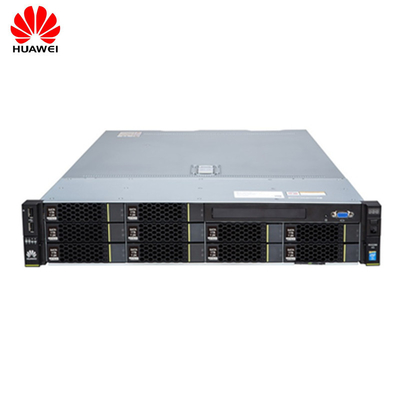

Xeon Rack Huawei RH2288 V3 FusionServer 2U Rack Server

Processor

Intel® Xeon® E5-2600 v3/v4 series processors

* Up to two Intel® Xeon®E5-2600 series processors
Core options: 4 (3.3 GHz), 6 (2.9 GHz), or 8 (2.9GHz)
* Two QPI links, up to 8.0 GT/s
* Maximum memory speed: 1600 MHz
* Maximum L3 cache: 20 MB

Memory

16 DDR4 RDIMMs/LRDIMMs

* Up to 24 DIMM slots (12 DIMMs per processor) for installing RDIMMs or LRDIMMs.
− RDIMM: Up to 384 GB with 24 x 16 GB RDIMMs for two processors
− LRDIMM: Up to 768 GB with 24 x 32 GB LRDIMMs for two processors
* Maximum memory speed: 1600 MHz
* Memory protection: ECC

Internal Storage

Supports the following hard disk configurations:

• Eight front 2.5-inch SSDs or SAS or SATA HDDs

• Twelve front 3.5-inch SAS or SATA HDDs and two or four rear 2.5-inch or 3.5-inch SSDs or SAS or SATA HDDs

• Twelve front 3.5-inch SAS or SATA HDDs (NVMe model supports four NVMe SSD disks) and two rear 2.5-inch or 3.5-inch SSDs or SAS or SATA HDDs

• Twenty-four front 2.5-inch SAS or SATA HDDs

• Twenty-five front 2.5-inch SSDs or SAS or SATA HDDs and two or three rear 2.5-inch SSDs or SAS or SATA HDDs

Supports built-in Flash:
• Two SD cards

The RH2288 V2 supports three types of hard disk configurations:
* 8 x 2.5” SAS/SATA hard disks or SSDs
Maximum storage capacity:
− 7.2 TB (SAS hard disks)
− 8 TB (SATA hard disks)
− 4.8 TB (SDDs)

* 12 x 3.5” and 2 x 2.5” SAS/SATA hard disks
Maximum storage capacity:
− 12.6 TB (SAS hard disks)
− 38 TB (SATA hard disks)

*  24 x 2.5” SAS/SATA hard disks or SSDs and 2 x 2.5” SAS/SATA hard disks
Maximum storage capacity:
− 23.4 TB (SAS hard disks)
− 26 TB (SATA hard disks)

RAID

RAID 0, 1, 10, 5, 50, 6, or 60

Configured with a supercapacitor for power-off protection for the cache (optional)

RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration

Various RAID controller cards are applicable to the RH2288 V2:
* SR120: supports RAID 0, 1, and 10.
* SR220: supports RAID 0, 1, 10, 5, and 50 with eight hard disks.
* SR620: supports RAID 0, 1, 10, 5, 50, 6, and 60 with eight hard disks.
* SR320: supports RAID 0, 1, 10, 5, and 50 with 16 hard disks.
* SR420: supports RAID 0, 1, 10, 5, 50, 6, and 60 with 24 hard disks.
* SR220, SR620, SR320, and SR420: support a 512 MB or 1 GB cache.

The RH2285 V2 provides power-off protection options:
* BBU: 3 x 24 hours
* Supercapacitor: permanent

Network Ports

2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports

Four integrated GE 1000BASE-T ports that use Intel 82580 network chips and support NC-SI

The Intel 82580 is a single-chip low-power device that supports dual- or quad-port GE designs. It provides four 1000BASE-T ports that integrate the Media Access Control (MAC), physical layer (PHY), Serial Gigabit Media Independent Interface (SGMII) and Serializer/Deserializer (SERDES), and supports PCIe 2.0.

PCIe Expansion

Up to 6 PCIe 3.0 slots

A single processor supports the following (a riser card is required):
*  One PCIe 3.0 x16 card of full height and full length

Fan Modules

Hot-swappable fan modules in N+1 redundancy mode

Four hot-swappable counter-rotating fans, allowing single-fan failures

Power Supply Units

2 hot-swappable PSUs in 1+1 redundancy mode

* Two redundant hot-swappable PSUs:
− 460 W/750 W/800 W AC
− 800 W –48 V DC

* Conversion efficiency: Up to 94% (for 460 W/800 W AC PSUs and 800 W –48 V DC PSUs)

Management

Uses the Huawei Hi1710 management chip and independent ports

Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring

Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios

UEFI, Huawei iMana
